Need appliance service but cannot find the model or serial number? The Sub-Zero Wolf rating tag provides key information technicians may need to identify the exact appliance, check product details, and prepare for service. Sub-Zero and Wolf place these tags in different locations depending on the model, so looking in the wrong spot can waste time.
The model number and serial number appear together on the appliance rating or serial tag. Sub-Zero also notes that a serial number is needed for product registration. At Wilshire Refrigeration, having these numbers ready can make the service process easier from the first call.
Why Do Serial and Model Numbers Matter?
Serial and model numbers identify the exact appliance being serviced. They help distinguish one model or production version from another, which is useful for registration, service preparation, and finding the correct product information.The rating plate on Sub-Zero Wolf appliances includes both numbers along with other appliance specifications.Warranty Validation
The serial number is important when registering an appliance and reviewing warranty information. Sub-Zero states that the unit serial number is required for product registration, which records the appliance and purchase information.Keeping the number with purchase documents also makes it easier to locate appliance records when warranty questions arise.Accurate Service Requests
The model and serial numbers help a service provider identify the appliance before a visit. This is useful because Sub-Zero appliances and Wolf appliances include many product families, sizes, and generations.A technician can use that information, along with the reported problem, to prepare more accurately for the service call.Correct Parts Ordering
The model number helps identify the appliance configuration, while the serial number can help distinguish production details. Both numbers are located on the product rating tag.Providing both numbers reduces the chance of relying on a model name that may apply to several appliance versions.

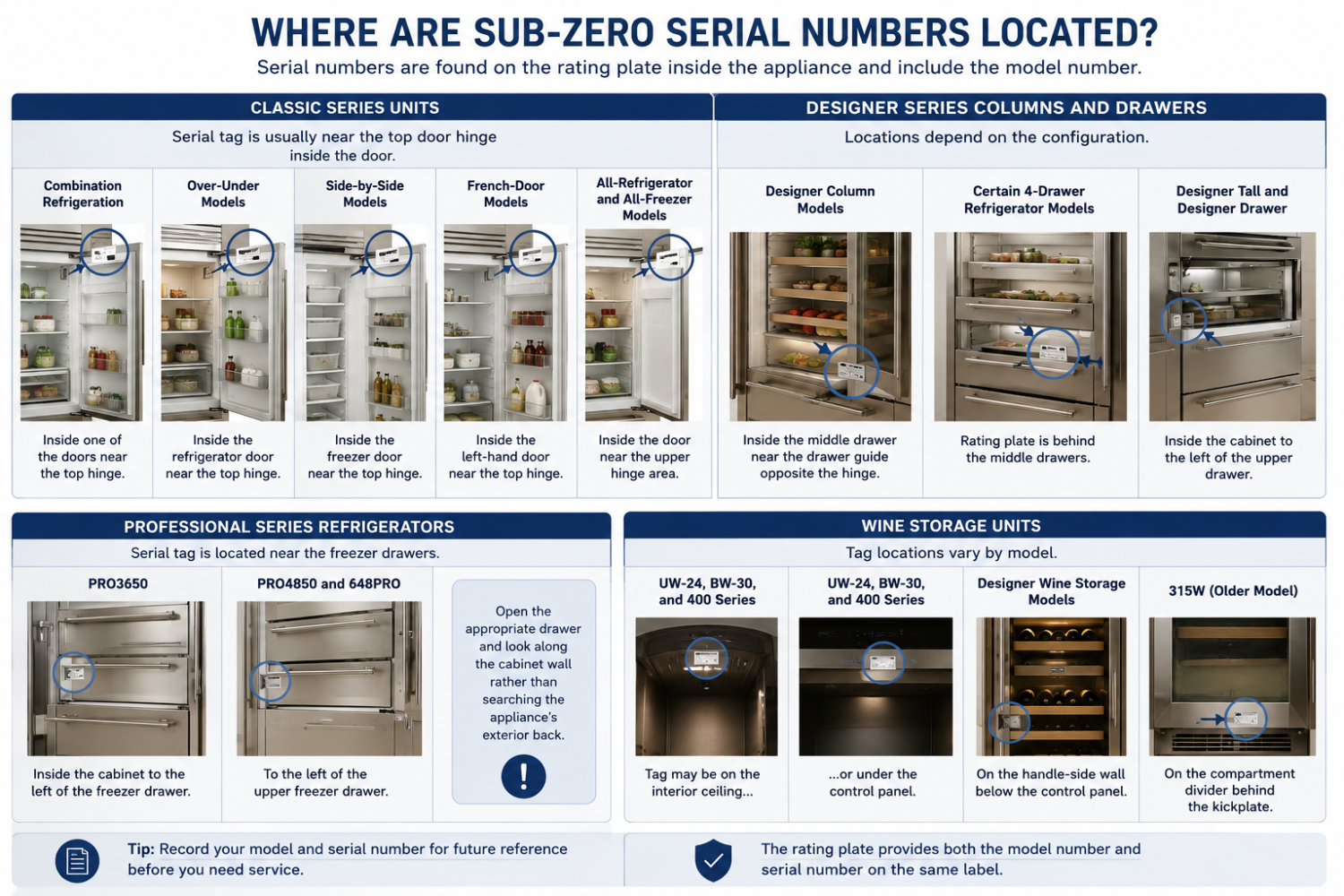

Where Are Sub-Zero Serial Numbers Located?

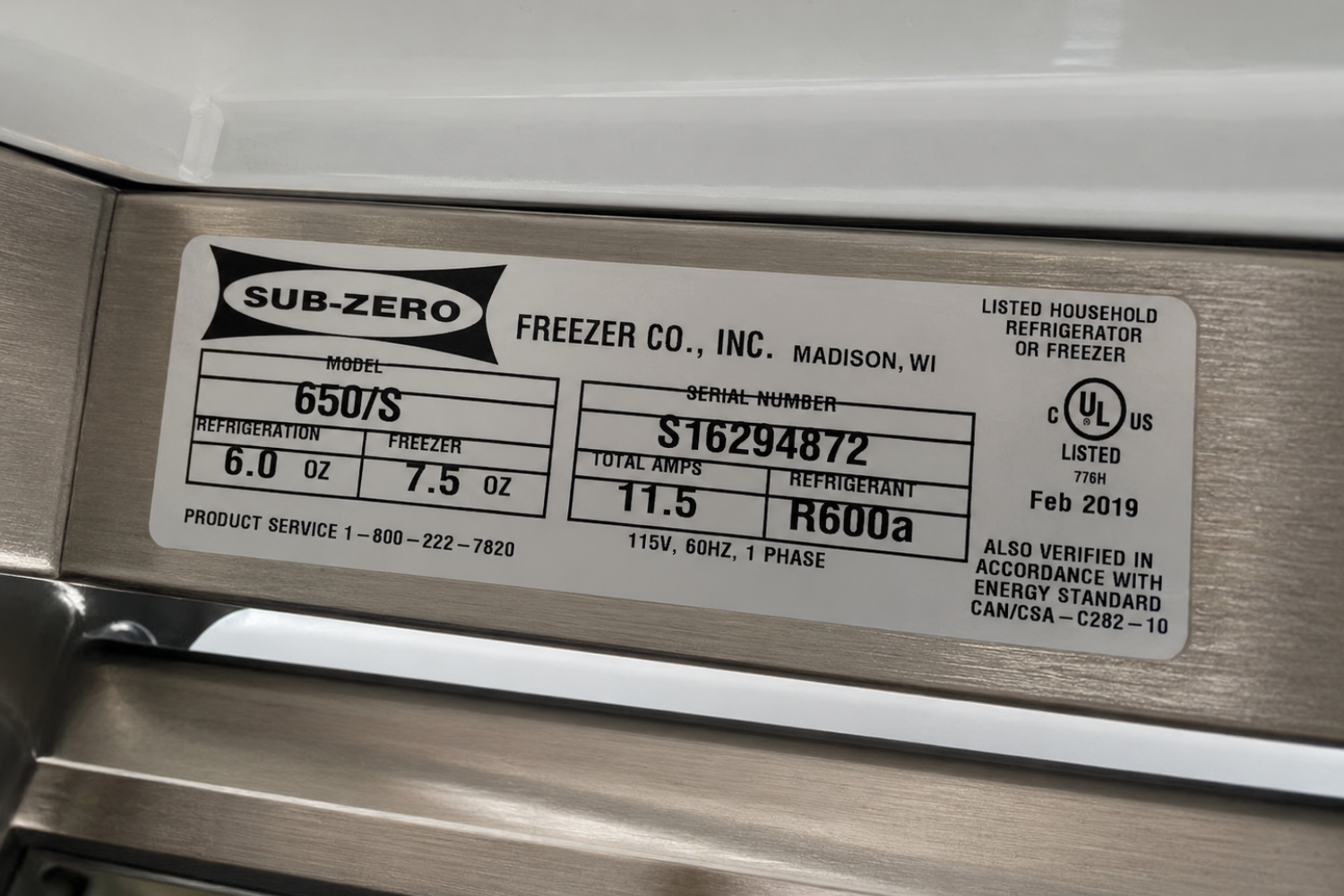

Sub-Zero serial numbers are found on the rating plate inside the appliance, but the exact position varies by product family. The same tag also displays the model number, so one label usually provides both pieces of information.Start by identifying whether the unit belongs to the Classic, Designer, Professional, or Wine Storage line.Classic Series Units
On Classic combination refrigeration, the serial tag is usually near the top door hinge inside one of the doors. For over-under models, it is inside the refrigerator door near the top hinge. On side-by-side models, check inside the freezer door near the top hinge. French-door Classic models place the tag inside the left-hand door near the top hinge.All-refrigerator and all-freezer models also place the tag inside the door near the upper hinge area.Designer Series Columns and Drawers
Designer Series locations depend on the configuration. On Designer Column models, check inside the middle drawer near the drawer guide opposite the hinge. Certain four-drawer refrigerator models place the rating plate behind the middle drawers.Designer Tall and Designer Drawer products generally place the tag inside the cabinet to the left of the upper drawer. This location may be useful to know before calling about a Sub-Zero refrigerator or Sub-Zero freezer.Professional Series Refrigerators
Professional Series refrigerators place the serial tag near the freezer drawers. On a PRO3650, the plate is inside the cabinet to the left of the freezer drawer. PRO4850 and 648PRO units are placed to the left of the upper freezer drawer.Open the appropriate drawer and look along the cabinet wall rather than searching the appliance’s exterior back.Wine Storage Units
Wine storage tag locations vary more than full-size refrigeration. UW-24, BW-30, and 400 Series units may have the tag on the interior ceiling or under the control panel. Designer wine-storage models place it on the handle-side wall below the control panel.Older 315W models use a different location, with the rating information on the compartment divider behind the kickplate.

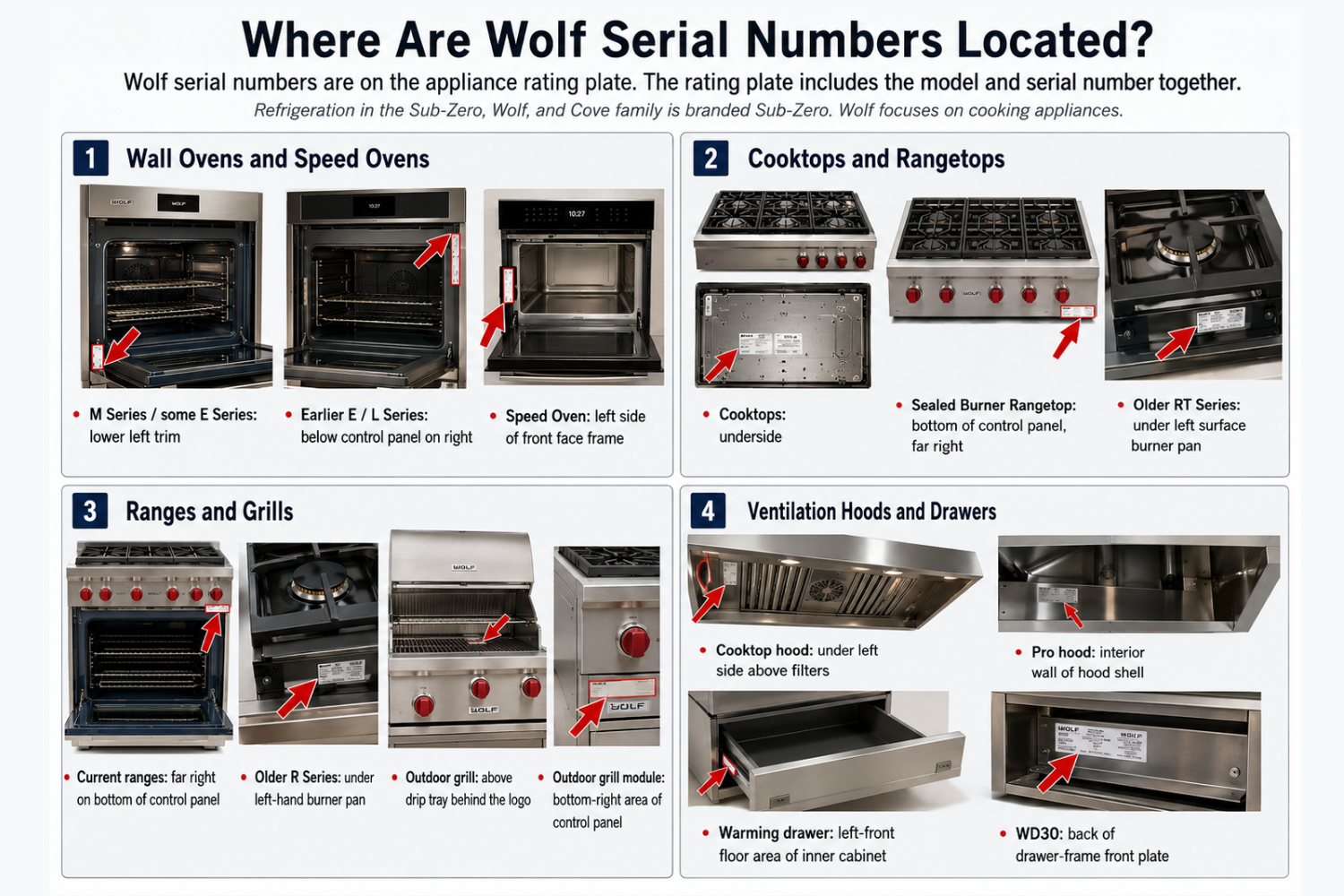

Where Are Wolf Serial Numbers Located?
Wolf serial numbers are located on the appliance rating plate, but ovens, cooktops, ranges, grills, and ventilation products use different tag positions. Wolf’s rating plate includes the model and serial number together.Someone may search for a Wolf refrigerator or Wolf fridge, but refrigeration within the Sub-Zero, Wolf, and Cove family is branded Sub-Zero. Wolf focuses on cooking appliances such as ranges, ovens, cooktops, and rangetops.Wall Ovens and Speed Ovens
Most Wolf oven tags become visible after opening the oven door. Current M Series and certain E Series models place the rating plate near the lower left trim, while some earlier E and L Series ovens position it below the control panel on the right.Wolf Speed Ovens place the serial tag on the left side of the front face frame with the door open.Cooktops and Rangetops
Wolf cooktops generally place the rating plate on the underside. Sealed Burner Rangetops place the tag on the bottom of the control panel at the far right.Older RT Series rangetops use a different location under the left surface burner pan. Remove burner parts only according to the manufacturer’s instructions, and only when the appliance is cool.Ranges and Grills
Current Wolf Dual Fuel, Induction, and Gas Ranges generally place the serial tag at the far right on the bottom of the control panel, visible when the oven door is open. Older R Series gas ranges can place it under the left-hand burner pan instead.For outdoor gas grills, look above the drip tray behind the logo after removing it. Outdoor Grill Modules place the tag on the bottom-right area of the control panel.Ventilation Hoods and Drawers
Cooktop ventilation hoods generally place the rating plate under the left side of the hood above the filters, which means the filters must be removed to see it. Pro hood locations vary, with tags on an interior wall of the hood shell.Wolf warming drawers typically require the drawer to be open. The standard warming drawer tag is in the left-front floor area of the inner cabinet, while the WD30 places it on the back of the drawer-frame front plate.
What Tools Help Identify Serial Numbers?
A few simple tools can make hidden rating plates easier to locate and record. Avoid moving a large built-in appliance just to find a label unless the product guide specifically requires access from outside the cabinet.Helpful tools for locating serial and model numbers include:- Flashlight: Use it to illuminate tags near hinges, drawer guides, cabinet walls, or underneath controls.
- Smartphone camera: Take a clear photo of a hard-to-read tag so you can enlarge the model and serial numbers on the screen.
- Owner’s manual or product guide: The model number may also appear in the use and care guide, while manufacturer guidance can help locate the rating plate.
- Sub-Zero Group Owner’s App: Registered appliance information can include serial and model numbers, warranty details, and other product records.
How Do I Record and Store My Appliance Information?
Record the model number, serial number, purchase date, and service history in an easily accessible place. A well-organized record is especially useful in a kitchen with several Wolf kitchen appliances, Sub-Zero refrigeration products, or Cove appliances.
A photo of each rating plate can also save another search when service is needed later.
Digital Notes or Spreadsheets
Create a simple digital record with one line for each appliance. Include the brand, product type, model number, serial number, installation date, and location in the home.
For a larger luxury kitchen, this makes it easier to separate information for the refrigerator, range, oven, dishwasher, and other equipment.
Warranty File Organization
Keep purchase receipts, registration confirmations, warranty documents, and rating-plate photos together. Product registration can provide online access to appliance details, such as serial numbers and installation information, when you use an account.
Save digital copies even if you keep paper records.
Service History Tracking
Record the date and reason for each service visit along with any parts replaced. This creates a useful maintenance history for older appliances and can help a technician understand previous work.
Include the appliance model and serial number on each service record to avoid mixing notes between similar units.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Can Service Technicians Help Locate Numbers?
Yes. A qualified service technician can help identify the model and serial tag when it is difficult to see or when the homeowner is unsure which label is correct. This can be especially useful with older built-in refrigeration or Wolf cooking products.Wilshire Refrigeration provides service for Sub-Zero refrigeration and Wolf cooking appliances.Professional Inspection
A technician familiar with Sub-Zero and Wolf product families knows the common rating-plate locations and can check the appliance during an inspection.Professional help is useful when accessing the tag would require moving a heavy appliance, removing installed components, or reaching an area that is not easily accessible.Quick Identification During Maintenance
Routine service provides a good opportunity to record appliance information. Ask for the model and serial numbers during the visit if you haven’t already saved those details.Taking a photo at the same time gives you a permanent record for future service requests.Added Assurance for Warranty Claims
Accurate numbers matter because the serial number is used for product registration and warranty records. A technician can help confirm that the recorded number came from the correct appliance rating plate.Keep in mind that warranty coverage itself depends on the applicable manufacturer terms, purchase details, and product history.Frequently Asked Questions
Where is the serial number on a Sub-Zero refrigerator?
The location depends on the model, but many full-size Sub-Zero refrigerators place the rating tag inside a door near the top hinge or beside an interior drawer.
How do I find the model number on a Wolf oven?
Open the oven door and check the model-specific rating plate location, which may be near the lower trim, front face frame, or below the control panel.
Can I use the Sub-Zero app to check my serial number?
Yes, the Sub-Zero Group Owner’s App can provide serial, model, and warranty information for registered appliances.
Do wine storage units have different serial tag locations?
Yes, Sub-Zero wine-storage serial tags may be on the ceiling, below the control panel, on an interior side wall, or behind the kickplate, depending on the model.
Why do service technicians always ask for serial and model numbers?
The numbers identify the exact appliance and help with product records, service preparation, registration, and selecting information that applies to the correct model.
