Planning to add Sub-Zero appliances to a new or remodeled kitchen? The cabinetry may get most of the attention, but you need to plan plumbing, electrical service, door clearance, and airflow before the appliance arrives. A missed outlet location or poorly placed water shut-off can turn a clean installation into extra work.
Exact requirements vary by model, so product design and installation guides should shape the kitchen layout from the start. Sub-Zero advises confirming the rough opening, electrical service, plumbing, and door clearance for the specific unit being installed. At Wilshire Refrigeration, careful planning helps homeowners prepare a kitchen that supports proper installation and long-term appliance performance.

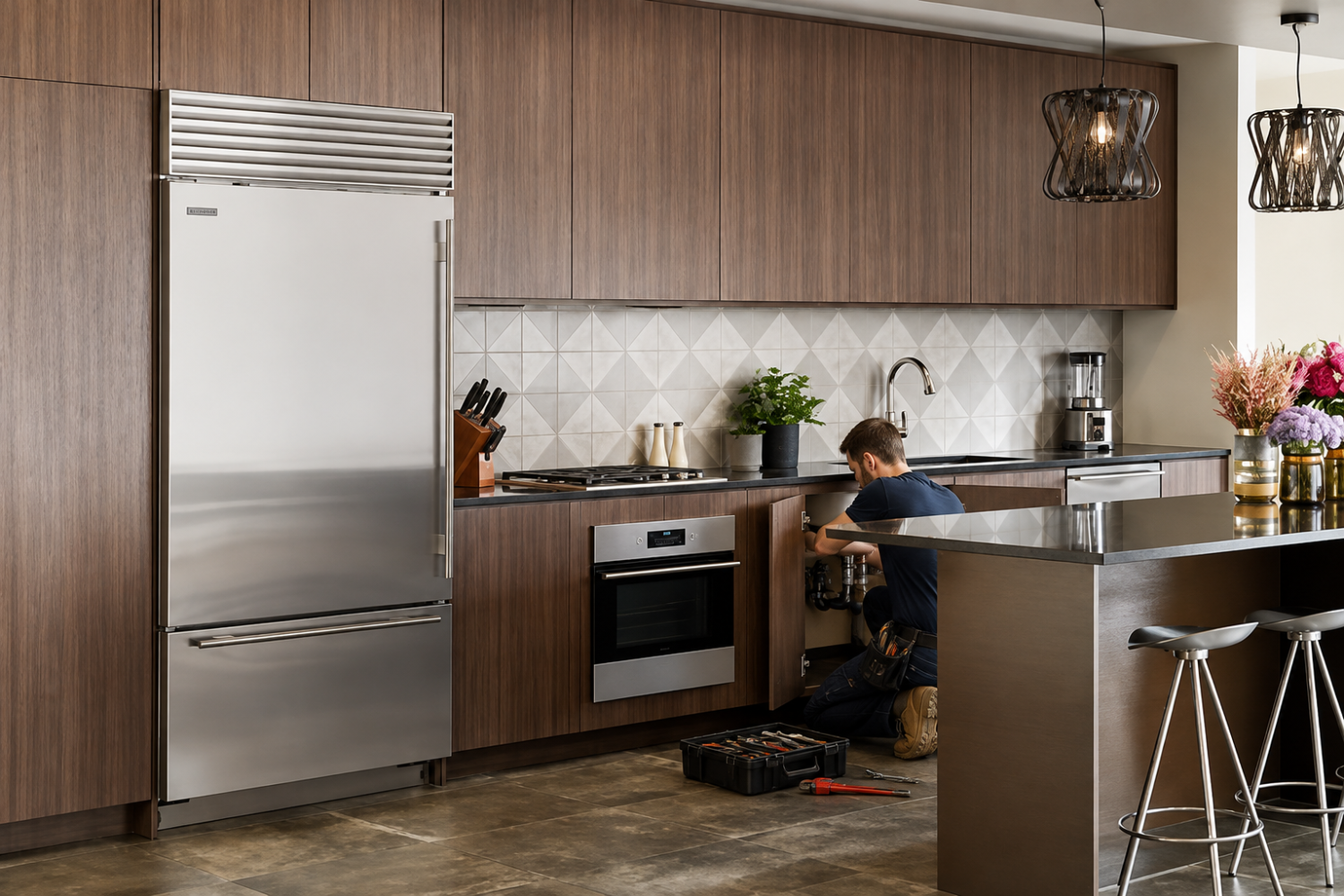

What Plumbing Is Needed for Sub-Zero Appliances?
Sub-Zero appliances that make ice or dispense water need a properly planned cold-water connection. Install the water line, shut-off valve, and access point before moving the refrigerator into the opening.Requirements can vary by model, so always check the installation guide for your specific Sub-Zero refrigerator before starting plumbing work.Dedicated Water Line
A Sub-Zero refrigerator that requires a water supply should be connected to an appropriate household cold-water line. Sub-Zero states that the supply line should use 1/4-inch outside-diameter copper, braided stainless steel, or PEX tubing.Install the line where it will not be crushed, kinked, or damaged when the refrigerator is moved into place. A plumber should complete the household water connection in accordance with applicable plumbing codes.Proper Shut-Off Valve
The water shut-off valve should be easily accessible without having to pull out a heavy, built-in Sub-Zero refrigerator. Sub-Zero recommends placing the valve in an accessible location, such as an adjacent cabinet, beneath a nearby sink, or another practical location as specified in the installation plan.That access matters during maintenance or in case of a leak. A valve hidden directly behind the appliance may be difficult to reach when a quick water shutoff is needed.Leak Prevention
Leak prevention starts with correct fittings, a sound supply line, and a connection that can be inspected after installation. Do not stretch the line tightly or place it where appliance movement can damage it.Sub-Zero also recommends connecting the refrigerator to cold water and using an easily accessible shut-off valve. Once installation is complete, check the plumbing connections carefully for signs of seepage before cabinetry and trim make access more difficult.
How Should Electrical Be Set Up?
Electrical planning should follow the installation guide for the exact Sub-Zero model. Consider outlet location, circuit requirements, grounding, and local electrical codes before finishing cabinetry.Sub-Zero, Wolf, and Cove state that each appliance requires a dedicated electrical circuit. That is especially important when planning a complete Sub-Zero appliance package or a kitchen that combines refrigeration, cooking, and dishwashing appliances.Correct Circuit Requirements
The correct circuit depends on the appliance, so the model specification should control the electrical plan. Do not assume that one outlet or circuit arrangement works for every Sub-Zero, Wolf, or Cove product.A larger kitchen may include a Wolf appliance package, separate refrigeration columns, or several other Wolf appliances. Plan each appliance according to its own electrical requirements rather than grouping it on a shared circuit.Grounded Connections
Connect the refrigerator using the grounding method required in the model installation guide and local electrical code. Improvised adapters, extension cords, or altered connections should not replace the specified electrical setup.Planning the receptacle before cabinets are installed also reduces the chance that wiring will need to be moved later.Outlet Placement

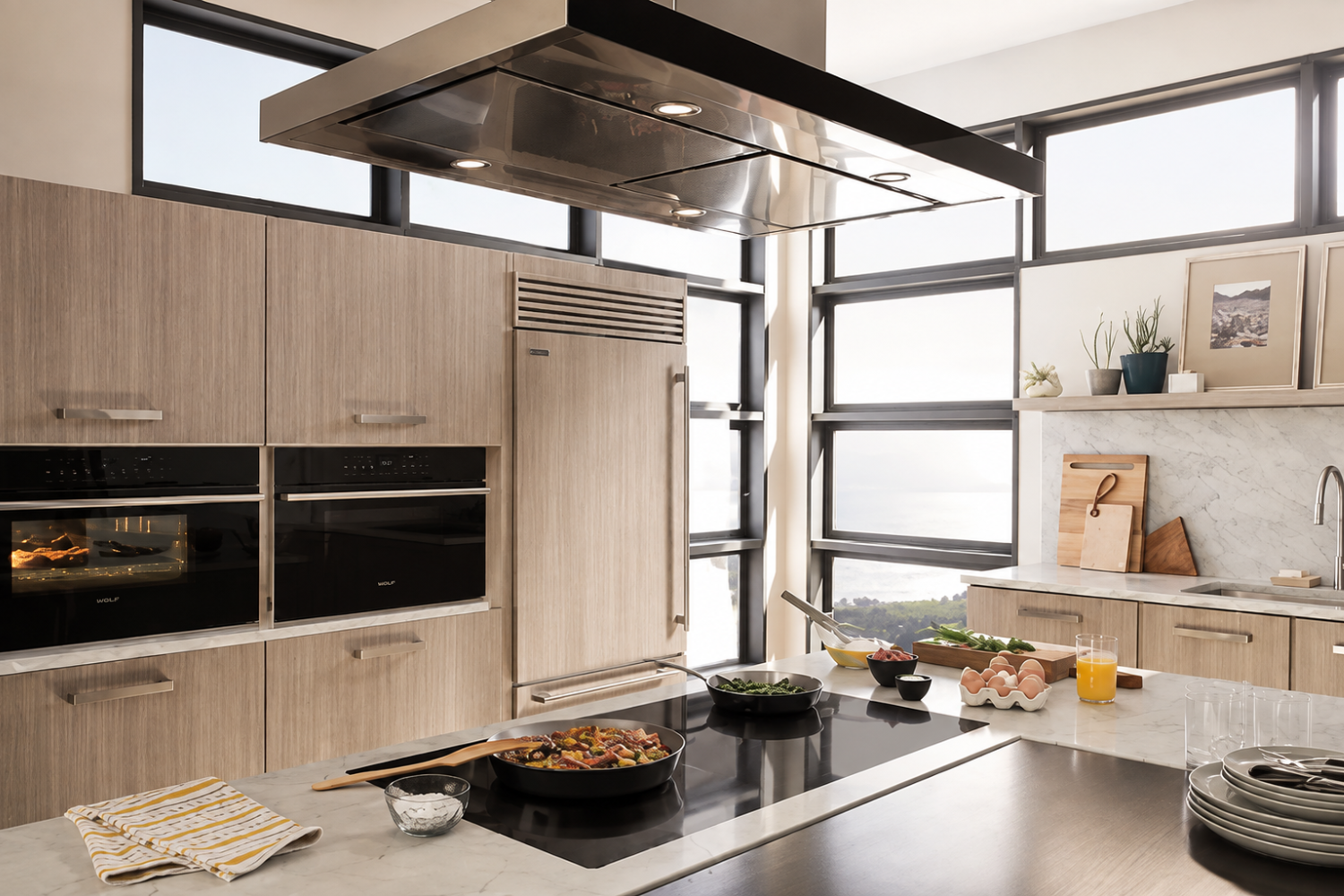

Outlet placement matters because a receptacle in the wrong area can interfere with the appliance or prevent it from fitting properly into the opening. Sub-Zero specifically advises using the design guide when planning electrical locations and warns that locations outside the specified area can cause installation problems.This is one reason appliance selections should be finalized before electricians and cabinet installers complete the kitchen.Why Does Airflow Matter in Sub-Zero Installation?
Proper airflow allows refrigeration components to release heat as designed. Blocking required ventilation areas can interfere with cooling and may cause the appliance to work harder than intended.Airflow requirements differ across product families, so cabinet and panel dimensions should be based on the current design guide rather than a general clearance rule.Ventilation Clearance
Required ventilation areas should remain open after the installation of decorative panels, trim, and toe kicks. Sub-Zero notes that kickplates are required on most models and that they support airflow across condensers on certain units. Reducing the required kickplate opening is not recommended.A custom kitchen can still look finished without covering the areas appliances need for ventilation.Cabinet Spacing
Cabinet openings need to match the dimensions listed for the chosen model, including width, depth, height, and door movement. Corner installations also need enough room for the refrigerator door and handle to open safely.Spacing becomes even more important in a coordinated Sub-Zero Wolf kitchen. For example, Sub-Zero says that a two-inch gap is a useful rule of thumb when installing a Sub-Zero product next to a Wolf appliance to help reduce condensation between the units, although the final layout should still follow the applicable design guides.Heat Dissipation
A high-end refrigerator still has to move heat away from its refrigeration system. Grilles, kickplates, and other ventilation areas should remain configured according to the manufacturer’s specifications.Sub-Zero warns that changing panel dimensions in ways that cover necessary airflow can restrict condenser ventilation. Good kitchen design works around those requirements instead of hiding them.

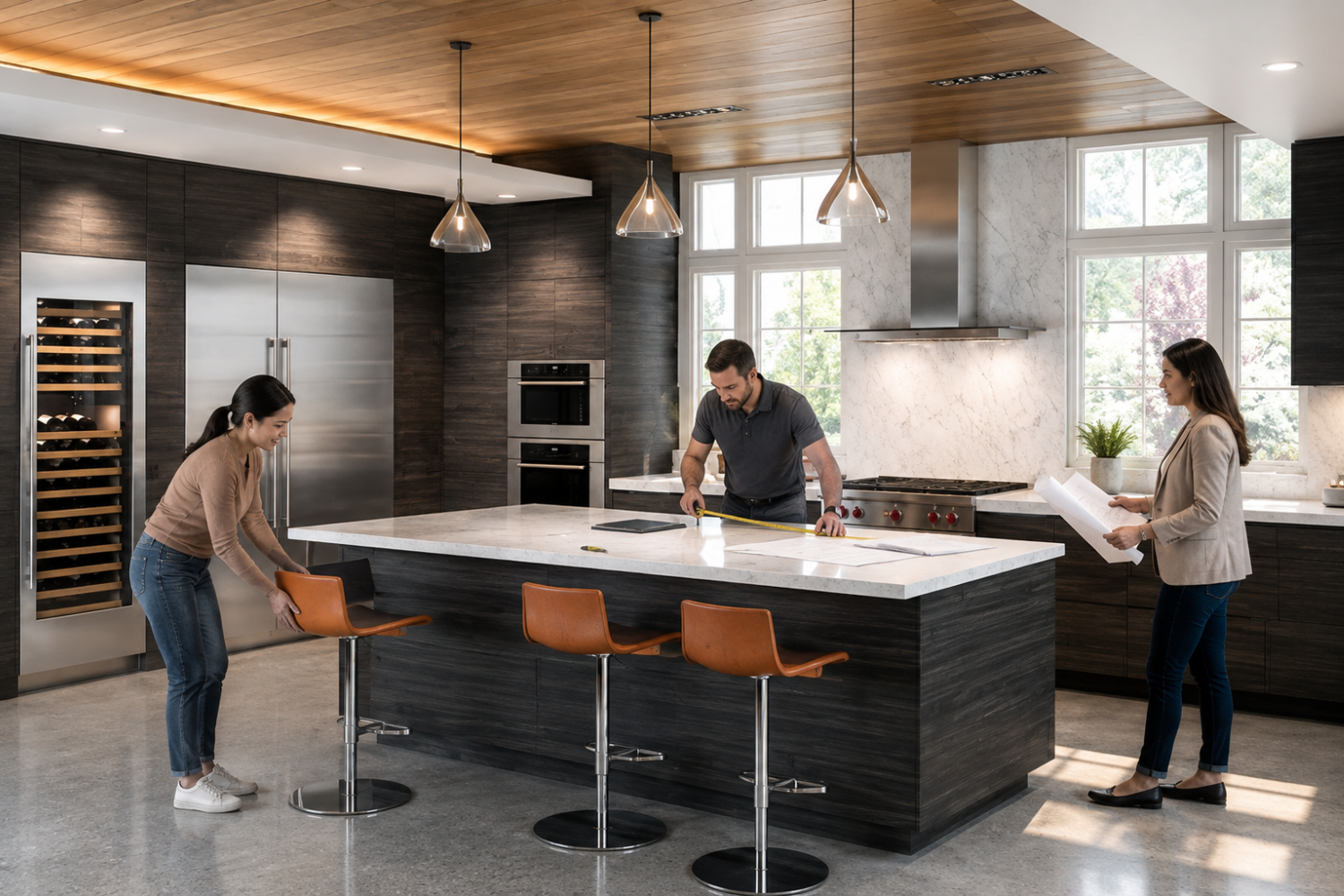

What Are the Key Specs to Check Before Installation?
The main specifications to confirm are plumbing, electrical service, ventilation, cabinet dimensions, door clearance, and structural support. Verify each item against the exact model documentation before finalizing the kitchen.Key checks include:- Water supply: Confirm whether the appliance needs water, the line material, and the shut-off valve location.
- Electrical service: Provide the dedicated circuit and receptacle placement specified for the model.
- Ventilation: Keep required grille, kickplate, and airflow areas unobstructed.
- Cabinet opening: Verify the finished width, height, depth, and installation style.
- Door clearance: Make sure doors and drawers can open without hitting walls, handles, islands, or nearby cabinets.
- Floor support: Check the appliance’s listed weight and make sure the finished floor and installation area can support and level the unit.
Can Sub-Zero Appliances Be Customized in Kitchen Layouts?
Many Sub-Zero appliances are designed to work with custom cabinetry, panel-ready finishes, and integrated kitchen layouts. The key is to design around the appliance specifications rather than altering required clearances or airflow paths.This flexibility also makes it easier to coordinate Wolf kitchen appliances and Cove appliances within the same kitchen.Panel-Ready Options
Sub-Zero’s Designer Series includes panel-ready refrigeration designed to integrate with surrounding cabinetry. Custom panels can create a more uniform kitchen appearance, but panel dimensions and weight must still stay within the manufacturer’s specifications.A cabinetmaker should work from the current design guide for the chosen model rather than measuring another refrigerator and assuming the dimensions will match.Built-In Flexibility
Sub-Zero offers several refrigeration formats that can suit different layouts, including built-in refrigerators, columns, drawers, and other configurations. That flexibility lets the refrigeration plan follow how the kitchen is used.A homeowner might choose one large refrigerator-freezer or separate units positioned around food preparation areas. The best arrangement depends on the model dimensions, door swing, utilities, and available cabinetry.Integrated Design
A coordinated kitchen can combine refrigeration, Wolf, and Cove appliances without making each appliance look isolated. Panel-ready refrigeration and carefully planned openings can give cabinetry a more continuous appearance.The visual result still depends on the technical planning behind the cabinets. Electrical access, water connections, ventilation, and service access should remain practical after the finished panels are installed.
Should I Hire a Professional for Sub-Zero Installation?
Professional installation is a sensible choice for Sub-Zero appliances because precise fit, utility connections, leveling, anchoring, and panel alignment all affect the completed installation. Sub-Zero provides detailed installation resources and model-specific specifications for these requirements.Wilshire Refrigeration & Appliance, Inc. states that it services and installs Sub-Zero, Wolf, and Cove appliances.Precision Requirements
Built-in refrigeration leaves little room for guessing. The finished opening, floor level, electrical location, plumbing connection, anti-tip hardware, door clearance, and decorative panels must all work together.A small measurement error becomes obvious when you place a large appliance beside finished cabinetry.Warranty Protection
Correct installation helps keep the appliance within manufacturer specifications, but warranty coverage depends on the applicable warranty terms. The safest approach is to follow the current installation guide, comply with local codes, and keep records of the work performed.Don’t assume an installation method is acceptable just because the refrigerator fits into the opening.Expert Troubleshooting
Professional installation also gives technicians a chance to identify problems before the kitchen is fully finished. An outlet in the wrong location, an inaccessible shut-off valve, inadequate door clearance, or a cabinet panel blocking airflow are easier to correct before securing the appliance.Early correction can save cabinet work and reduce the risk of performance problems after installation.Frequently Asked Questions
Do Sub-Zero refrigerators need a dedicated water line?
Models with an ice maker or water dispenser require an appropriate cold-water supply line installed according to the model specifications.
What electrical circuit is required for Sub-Zero appliances?
Sub-Zero appliances require a dedicated electrical circuit; confirm the exact electrical specifications in the model’s installation guide.
How much ventilation clearance does a Sub-Zero fridge need?
Ventilation requirements vary by model, so use the current Sub-Zero design guide and keep specified grilles, kickplates, and airflow areas unobstructed.
Can Sub-Zero appliances be installed flush with cabinets?
Yes, certain Sub-Zero models support flush or integrated installations when the cabinetry, panels, and opening dimensions meet the manufacturer’s specifications.
Should I schedule professional maintenance after installation?
Professional maintenance can help check appliance condition and performance over time, especially for built-in luxury refrigeration that receives daily use.
